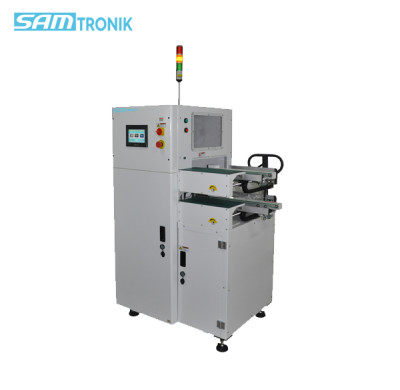

Magazine Turn Buffer Stacker

Magazine Turn Buffer Stacker

Magazine Turn Buffer Stacker
CategoriesStock Buffer
BrandSAMTRONIK
ModelSMC-1C100L
ConditionNew
Voltage220V
Weight200kg
Dimension(L*W*H)1245*1175*1600mm
CertificationCE
Warrantyone year warranty
After-sales Service ProvidedEngineers available to service machinery overseas
FOB portShenzhen/Hongkong
Terms of PaymentT/T
Download DOCpdf icon
Update TimeMar 28,2024
Detail Information

turn buffer stocker

Feature:

Used for stocking PCBs between reflow oven and AOI.

Five operation mode: Loading ,Unloading ,FIFO,LIFO,Pass-through.

PLC Programming controller.

Easy operation Soft touch control panel.

SMEMA compatible.

Application example :

Technique Parameter :

Description

Used for loading&un-loading PCB from the Magazine

No of Magazine

Upper Conveyor:1;Lower Conveyor: 2

Cycle Time

Approx. 20 seconds or Specify

Indexing Pitch

10, 20, 30, 40mm or specify

Power Source

220VAC 50/60HZ

Air Pressure &

Consume

4-6 bar,Max 15ltr/min

PCB Thickness

Min 0.6mm

Specification :

Model

Size

Dimension

(L * W* H) (mm)

EffectivePCB Size( LxW) (mm)

Approximate

Weight (Kg)

Rack size

(L*M*H)mm

SMC-1C100M

M

1245*1175*1600mm

50*50-330*250

140

355*320*560

SMC-1C100L

L

1460*1258*1600mm

50*50-445*330

200

460*400*560

SMC-1C100LL

LL

1635*1450*1600mm

50*50-530*390

240

535*460*570
