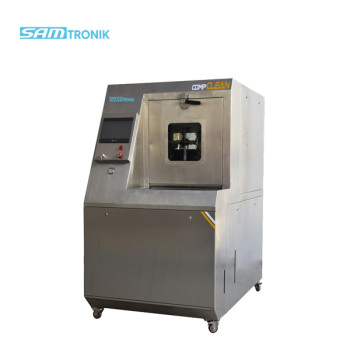

SM-5600 Off-line PCBA Batch Cleaning Machine

SM-5600 Off-line PCBA Batch Cleaning Machine

SM-5600 Off-line PCBA Batch Cleaning Machine
SM-5600 Off-line PCBA Batch Cleaning MachineSM-5600 Off-line PCBA Batch Cleaning MachineSM-5600 Off-line PCBA Batch Cleaning Machine
CategoriesPCB/PCBA cleaning machine
AlbumView larger image
BrandSAM
ModelSM-5600
Machine TypeIndustrial Washer
ConditionNew
FeatureCritical Cleaning / Residue Free
FuelElectric
CertificationCE
UseOther
Cleaning ProcessCold Water Cleaning
Cleaning TypeIndustrial Ultrasonic Cleaner
Industry UsedElectronic Industry
MaterialMetal / Coil
Terms of PaymentL/C, D/A, D/P, T/T
Update Time2018-11-14
Detail Information

Features

1.Comprehensive cleaning: For PCBA product residues on the surface cleaning

2 .Automatic cleaning mode: in a clean room complete cleaning, rinsing and drying process, small volume, compact structure


3 .Extra large cleaning capacity  610mm(L)*560mm(W)*100mm(H) .Double design, to meet greater cleaning product size and higher capacity


4 .The most scientific spraying trajectory design: nozzle use left and right incremental type ,up and down dislocation type distribution, and cleaning area of nozzle flow calculation by calculation and arrangement, totally solve the blind clean area problem


5. Standard heating systems: cleaning box assembly 9 kw heater , cleaning room reserved 3 kw heater position, enhance the cleaning efficiency, shorten the cleaning time


6 .Large size touch screen operation interface: stable and reliable color touch-screen, can set cleaning process parameter according to different products, operation more simple


7 .High standards of cleanliness: ion pollution Ⅲ grading standards fully meet IPC - 610 - d (below 1.5 ug/cm ^ 2, as an associate) and the United States military standard MIL28809 of grade I standard


8 .Convenient cleaning agent ratio: can manually add, also can be set according to the proportion (5% 25%) with DI water and chemical liquid


9.Spray chamber structure, double seal design spray room, to ensure good sealing effect (Optional : the machine installation density compensation pump, when the manufacturer cleaning a lot of same product)


10.Diluent concentration decreases, the concentration of compensation systems to ensure diluent concentrations remain in the best scope

Specifications

Cleaning size

single:600mm(L)*560mm(W)*200mm(H) double layer degsin



Dilution tank capacity



70L



Spray tank capacity



17L



Concentrate tank capacity



30L



Clean mothed



360°rotary



Clean time



5-30 min (reference )



Rinse time



1-2 min (reference)



Rinse times



1-99 times (can setting by requrement )



Drying time



20-30 min (reference)



Cleaning fluid recycling



0.45μm (Micro filter :solder paste,rosin,soldering flux,pollutant)Rinsing liquid Emission filter:0.45μm

(Micro filter :solder paste,rosin,soldering flux,pollutant)



Diluent heating temperature



normal temp .~55°C

Spray tank temperature compensation

normal temp .~55°C



Drying and heating temperature



room temp. ~80°C



Resistivity meter monitoring scope



0~18M



DI water supply



30~60L/min

DI water pressure

less than0.4Mpa



DI water in and out connecting pipe size



1 inch



Air supply



0.45Mpa~ 0.7Mpa



Air consumption



200-400L/Min



Power supply



AC380V 50HZ 65A



Net weight



600Kg



Air outlet size



Φ100(W)×30mm(H)



Dimension



1200mm(L)*1100mm(W)*1850mm(H)
