Home > Products > SMT Cleaning Machine > SMT Squeegee Cleaner >

SM-600 SMT Squeegee Cleaning System

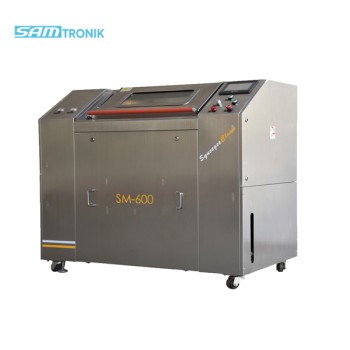

SM-600 SMT Squeegee Cleaning System

SM-600 SMT Squeegee Cleaning System
CategoriesSMT Squeegee Cleaner
AlbumView larger image
BrandSAMTRONIK
ModelSM-600
FOB portShenzhen
Terms of PaymentT/T
Update Time2019-03-25
Detail Information

Features :



Innovative exterior design , Rotary ultrasonic with twice high pressure spraying capable of removing solder paste and uncured adhesive .

Fully automatic wash & rinse ,auto add and drain clening chemical controlled by HMI , Equipped with pneumatic pump .



Inching transposition ,convenient to take and put squeegee.



With open cover protection function, cover open can't start .



Equipped with solder paste recycle device .



Unique squeegee install method prevent slip down when machine running.



PLC auto control system , can select muilt programming mode , easy operation,safe and reliable ,easy to maintain .



Low liquid and power consumption , no pollution,304# stainless steel construction , corrosion resistance.





Tech datesheet



Model

SM-600

Dimension

1400*900*1300

Basket diamension

200mm

Max squeegee length

600mm

Loading weight

20KG

Air pressure

0.4-0.6Mpa

chemical capacity

60L

Spraying pressure

0.15-0.3Mpa

Power

18KW

Voltage

380V/50HZ
