Automatic wave solder pallet cleaning machine , condenser cleaning machine

Automatic wave solder pallet cleaning machine , condenser cleaning machine

Automatic wave solder pallet cleaning machine ,  condenser cleaning machine
Automatic wave solder pallet cleaning machine ,  condenser cleaning machineAutomatic wave solder pallet cleaning machine ,  condenser cleaning machine
CategoriesWave pallet cleaning machine
AlbumView larger image
BrandSAM
ModelSM-8400N
Machine TypeHigh Pressure Cleaner
ConditionNew
FeatureCritical Cleaning / Residue Free
CertificationCE
UseFor clean solder pallets and tools
Cleaning ProcessSolvent Cleaning
Cleaning TypeHigh Pressure Cleaner
Industry UsedElectronic Industry
MaterialMetal / Coil
Power(W)27KW
FOB portShenzhen/Hongkong
Terms of PaymentL/C, D/A, D/P, T/T
Download DOC
Update Time2018-09-21
Detail Information

Automatic reflow tray cleaning machine,spray washing machine for wave pallets ,Tooling &fixtures cleaning machine

Introduction

The equipment is suitable for all kinds of the outer surface of the workpiece cleaning, such as wave soldering jig, reflow soldering tray, condenser cleaning, printing scraper, machine parts surface flux, clean oil, dust etc. Integrated use of artifacts in the rotating basket by high pressure spray cleaning, high pressure spray rinse, high-pressure wind shear and large flow fan hot air drying technology, guarantee the cleaning effect.



Features

1.One button operation ,Automatic completes the whole cleaning process,Auo add and discharge clean and rinse liquid .



2.Intergrate the function of cleaning,rinsing and drying ,



3.Tooling & fixtures cleaned can be used directlu next process , the cleaningperfoemance is perfect .



4.Spray pressure adjustably ,cleaning in 720 degree directions no blind angle .



5.High loading capacity ,saving labor



6.High -performance rinsing and liquid circulating filtration system ,cleaning spray system in the airtight chamber ,and keep the cleaning agent life longer ,save cost.



7.Equipments running with low energy consumption, low noise, no pollution, energy save and environmental protection, the whole structure with stainless steel .



Specification

Model

SM-8400N



Dimention

2000*1500*1600mm



Clean Basket diameter

1000mm



Parst Max height

480mm



Basket loading

100 KG



Spraying pressure

5-8 KG



Power

27KW



Volt/Freq

380V/50HZ



Recommend clean agent

Water-based clean agent







 Cleaning Effect

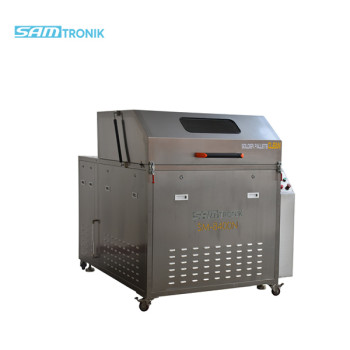

Wave solder pallet cleaning machine

 Machine working video




Other pictures



  Wave solder pallet cleaning machine











Packaging & Shipping







                Plywood case for export
