SAM New Design SM-8150N SMT Stencil cleaning machine Metal plastic stencil cleaners

SAM New Design SM-8150N SMT Stencil cleaning machine Metal plastic stencil cleaners

SAM New Design SM-8150N SMT Stencil cleaning machine  Metal plastic stencil cleaners
SAM New Design SM-8150N SMT Stencil cleaning machine  Metal plastic stencil cleanersSAM New Design SM-8150N SMT Stencil cleaning machine  Metal plastic stencil cleanersSAM New Design SM-8150N SMT Stencil cleaning machine  Metal plastic stencil cleanersSAM New Design SM-8150N SMT Stencil cleaning machine  Metal plastic stencil cleanersSAM New Design SM-8150N SMT Stencil cleaning machine  Metal plastic stencil cleaners
CategoriesStencil cleaning Machine
AlbumView larger image
BrandSAM
ModelSM-8150N
Machine TypeHigh Pressure Cleaner
ConditionNew
FeatureCritical Cleaning / Residue Free
FuelElectric
CertificationCE
UseCleaning stencil
Cleaning Processwater-based cleaning
Cleaning TypeHigh Pressure Cleaner
Industry UsedElectronic Industry
MaterialMetal / Coil
Power(W)33kw
Dimension(L*W*H)600mm*1160mm*1850mm
After-sales Service ProvidedEngineers available to service machinery overseas
ApplicationStencil , Gule fixture ,PCBA ,PCB
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, T/T
Download DOC
Update Time2018-09-21
Detail Information

 SM-8150 SMT Stencil cleaning machine,PCBA Cleaning Equipment for PCB Assembly      line

Product Description



Water-based cleaner machine is a water-based cleaning process design  cleaning equipment. Fully automatic finish cleaning- rinsing- drying  process, the main application is stencil, plastic mesh, scraper, the furnace jig cleaning, etc.

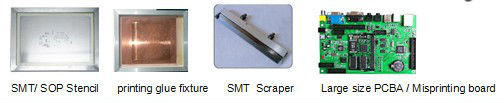

The application fields :



SMT Stencil cleaning machine



Features :



1.Dedicated to water-based cleaning fluid to clean stencils, PCBA, etc. Process with high pressure spray system.



2.Double liquid tank, equipped with heating system, implementation needs cleaning and rinsing.



3.Technological process: cleaning chemical isolation - rinse (open loop/closed loop) - dry

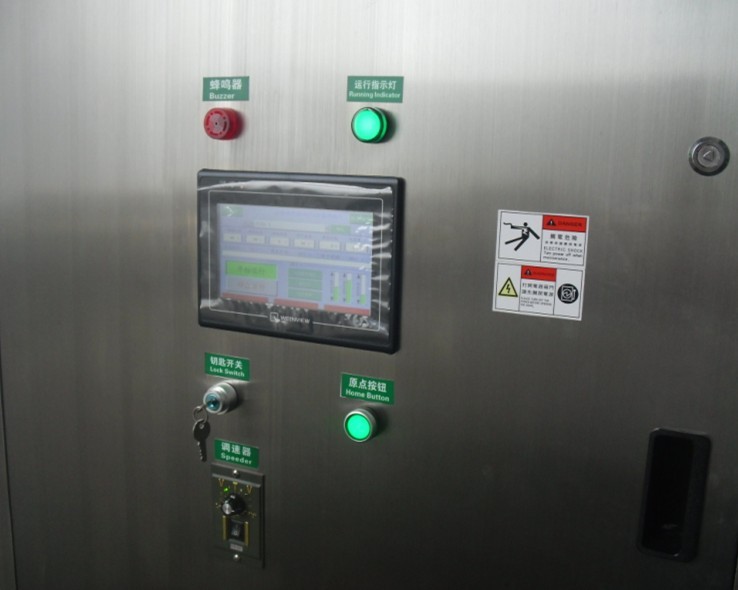

4.Preparation of advanced automatic touch screen operating software, program files stored, used and its simplicity



5.Counting system function, can automatically accumulated cleaning sheet number and loop filter



6.Liquid and the pump pressure can be displayed through the panel pressure gauge, feedback the equipment running status



7.Window cleaning pressure can be adjusted independently, process is more wide, solve the SMT stencil tension in the process of high pressure cleaning problem


8.Drift lotion resistivity monitoring, ensure the cleanliness, the resistivity can be set up, meet the demand of different halftone technique.




9.Consumables monitor alarm filter service life

10.Integral stainless steel fuselage, strong and durable, resistant to acid, alkali cleaning fluid, etc


11. Floating lotion emissions filtering, more environmental protection


12.Effect of high pressure fan + hot air drying, drying more quickly and thoroughly


13. Lower running cost, every time only 12 l liquid cleaning, clean end use compressed air recycling pipeline and pump more than residual liquid, liquid consumption can reduce 50%



 Specification



Apply screen size

Max 740mm(L) ×740mm(W) × 40mm(H)



Cleaning fluid capacity

50L*2PCS(max)



Best liquid usage

40L*2PCS



Clean and risn method

Left-right moving high pressure liquid spray cleaning



Drying method

High pressure hot air(Optional super models)



Clean time

2-5 Min



Cleaning fluid separation time

40S



Rinse time

2-5 Min



Rinse times

1-99times (adjustable)



Drying time

2-5Min



Cleaning liquid recycling

1μm (Micro filter: rosin, solder paste, flux and pollutants)



Rinse liquid emission filter

5μm (Micro filter: rosin, solder paste, flux and pollutants)



Liquid heating temperature

room temp~60°C



noise

Less than 50 decibels



Range of resistivity tester

0~18MΩ



DI water supply

30~60L/min



DI water pressure

≤0.4Mpa



DI water Gateway connecting pipe

1 Inch

Air supply

 0.45Mpa ~0.7Mpa



Power supply

AC380V 50HZ 65A



Total power

33KW



Net weight

500Kg



Air out size

Φ124(W)×30mm(H)



Dimension

1600mm(L) ×1160mm(W) ×1850mm(H)

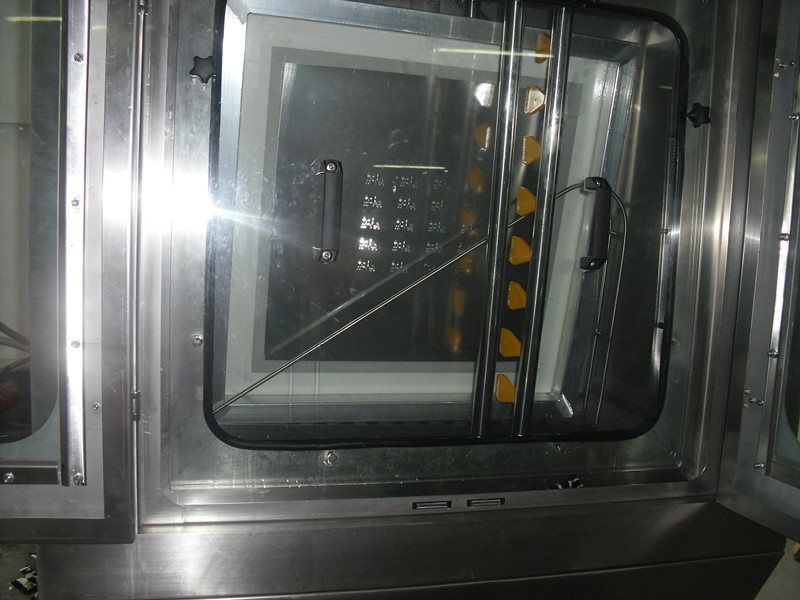

Pictures :

SMT Stencil cleaning machine



SMT Stencil cleaning machine





Other  Stencil cleaning machine Model option :

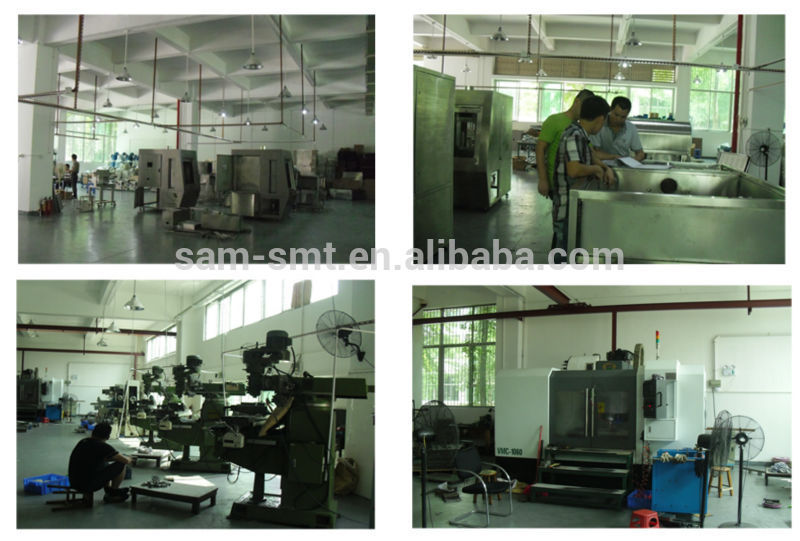

SAM Factory



SMT Stencil cleaning machine



Exhibition

SMT Stencil cleaning machine



Honor Customer



SMT Stencil cleaning machine
