SAM Lowest cut stress PCB depaneling Machine

SAM Lowest cut stress PCB depaneling Machine

SAM Lowest cut stress PCB depaneling  Machine
SAM Lowest cut stress PCB depaneling  MachineSAM Lowest cut stress PCB depaneling  MachineSAM Lowest cut stress PCB depaneling  Machine
CategoriesGuillotine type PCB Separator
AlbumView larger image
BrandSAMTRONIK
ModelSM-4000
Machine dimension size650mm*500mm*1050mm
Upper blade350mm(L)*58mm(W)*7mm(T)
lower blade360mm(L)*39mm(W)*7mm(T)
weight170kg
cut Effective length350mm
separate boardgood for separate v-groove pcb board
separate waysone time cut off
blade use lifelonger than other separator machine
bladecan grinding 4 times (save your cost)
FOB portShenzhen/hongkong
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T
Download DOC
Update Time2019-03-25
Detail Information

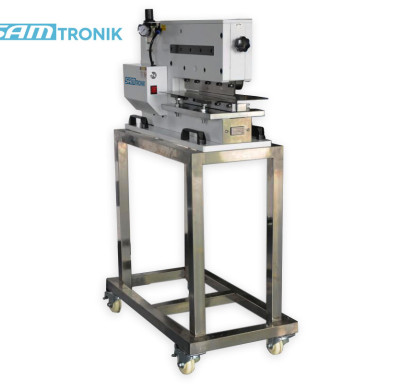

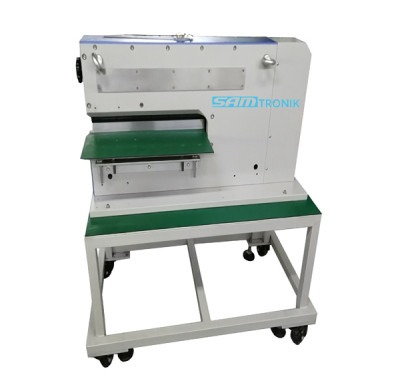

SM-4000 Lowest cut stress high quality PCB depaneling  Machine,Best selling PCB Separator



Introduction:

Pneumatically driven and electric control

The machine is pneumatically driven and electric control. The straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Even
sensitive SMD-components like ceramic capacitors will not be damaged by the separate process. Due to the special design of the knives also boards with high components placed close to the edges can be separated safely. Based on a proven method of separating, wedge-shaped knives are used to cut the panels within the groove. This enables boards of less than 1 mm thickness to be separated safely and without creating stress.

Features

1, No vibration during the process to prevent damage to precise PCB

2,Gap for insertion of the board can easily be adjusted by means of the adjusting knob in the top side of the machine, low friction design is applied.

3,Lower knife height adjustable, the front and real portion can be adjusted separately. No thin plates are required after re-sharpening the knife.

4,Operation and maintenance can be done also by unskilled personnel

Specification:

Specification

Power Voltage: 90~240VAC

Air pressure: 6Kgs/cm2

Output : 3 ton(Gross)

Part-Up height: 39mm (max)

Part-Down height : 19mm (max)

PCB thickness: 0.3mm~3.2mm (with v-grooved )

                            0.1mm-1.0 mm(without v-grooved)

Weight : 170kg

Upper blade: 350mm(L)*58mm(W)*7mm(T)

lower blade: 360mm(L)*39mm(W)*7mm(T)

Effective cut length :SM-4000 :350mm  SM-4000L:430mm

protect times : 200000 times ,can abrade 3-4 times

Machine dimension: 500mm*650mm*1050mm

PCB Separator cut blade pictures

Customer cutting stress test report

Test v-cut point =5mm

Test V-cut Point <5mm
