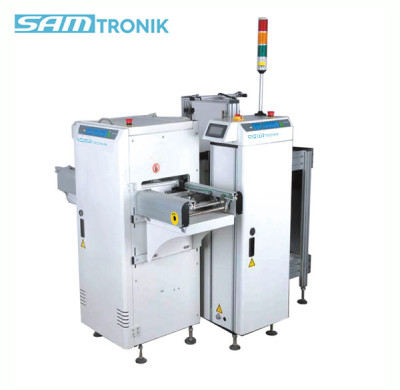

SPI/AOI Vertical Buffer

SPI/AOI Vertical Buffer

SPI/AOI Vertical Buffer
SPI/AOI Vertical BufferSPI/AOI Vertical Buffer
CategoriesStock Buffer
BrandSAMTRONIK
ModelSMB-1F100M
ConditionNew
Voltage220V
Weight220kg
Dimension(L*W*H)1100*875*1560mm
CertificationCE
Warrantyone year warranty
After-sales Service ProvidedEngineers available to service machinery overseas
Download DOCpdf icon
Update TimeMar 29,2024
Detail Information

                                               SPI/AOI Vertical buffer     NG/OK Buffer

Feature:

1. User friendly ‘soft touch’ LED membrane control panel.

2. Operating mode:OK pass through or Stock,Ng reject,Awaiting definite, By Pass.

3. Durable rollers as conveying medium. ( no replacement of belts needed)

4.Fast,Smooth and Accurate indexing position. (Servo motor Drive)

5. ‘Threshold” system provided.

6. Smooth and parallel width adjustment.( Lead screw driven)

7. Small machine footprint.

8.SMEMA compatible .

Application example :


Technique Parameter :

Description

Used as a buffer between SMT Machine

Max PCBs Capacity

15 pcs or specify

Max PCBs Load

2kg/PCB

Cycle time

Approx. 15 seconds

Indexing Pitch

20mm or specify

Power Source

220VAC 50/60HZ

Air Pressure &

Consume

4-6 bar, 15ltr/min max.

PCB Thickness

0.6mm min.

Detail Photos


Specification :

Model

Size

Dimension

(L * W* H) (mm)

EffectivePCB Size

( LxW) (mm)

Approximate

Weight (Kg)

CYB-1F100M

   M

1000*750*1560mm

50*50-330*250

    180

CYB-1F100L

   L

1100*875*1560mm

50*50-445*330

    220

CYB-1F100LL

   LL

1200*980*1560mm

50*50-530*390

    280
