Stencil cleaning Machine
STENCIL CLEANING MACHINE · SMT CLEANING EQUIPMENT · MADE IN CHINA
SMT Stencil Cleaning Machine & Stencil Cleaning Systems
SAMTRONIK is a stencil cleaning machine manufacturer in Shenzhen, China. We build pneumatic, ultrasonic and electric stencil cleaning machines that strip solder paste, flux and red glue out of SMT stencils in a single 3–5 minute cycle, with automatic wash, rinse and dry, solvent recirculation and 3-stage filtration. Every stencil washing machine leaves our factory CE certified with a one-year warranty, and can be built to your stencil size, voltage and cleaning chemistry as an OEM or ODM order.
3–5 minautomatic wash, rinse and dry cycle
750 × 750 mmstencil size handled as standard
3 platformspneumatic, ultrasonic or electric
CEcertified builds, one-year warranty
Choose Your Stencil Cleaning Machine
Three cleaning platforms, built for different cleaning problems. Pick the one that matches the residue you are fighting.
Pneumatic Stencil Cleaning Machine SME-750
Driven by compressed air alone — no electrical parts inside the wet chamber. SUS 304 body and pipework resist acid and alkali attack, patented 360° double-side rotary spray rods clean both faces of the stencil without disturbing tension, and one button runs wash, rinse and dry. Stencil size up to 750 × 750 × 40 mm, 40 L tank, 230 kg, 800 × 950 × 1650 mm.
View model & specs

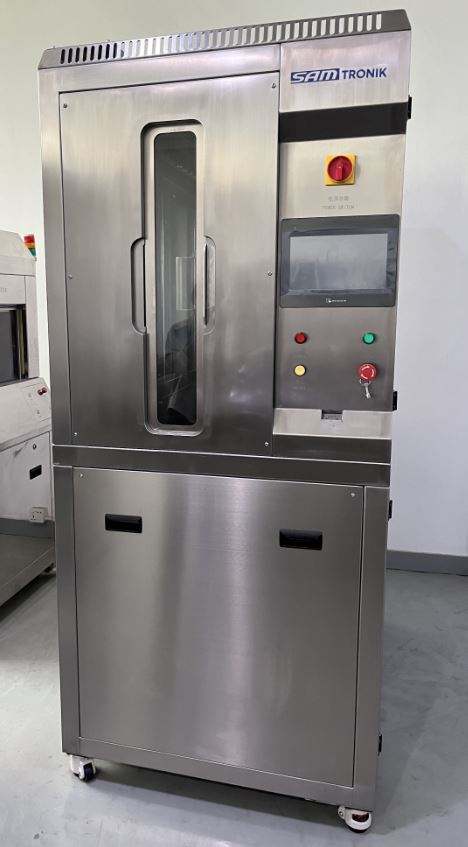

Ultrasonic Stencil Cleaning Machine SME-730
A three-stage automatic stencil cleaning machine: spray-in-air first cleaning, ultrasonic final cleaning, then spray-in-air rinsing. The ultrasonic stage reaches fine-pitch apertures and aged flux that spray pressure alone cannot shift — the platform to specify for high-reliability and fine-pitch production.
View model & specs
Electric Stencil Cleaning Machine SME-800

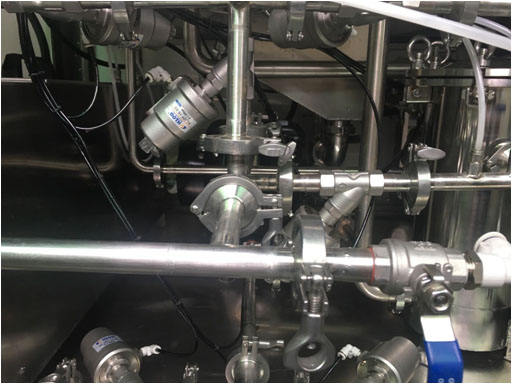

A heated electric stencil cleaning machine that also serves as a metal stencil cleaner, handling red glue stencils, misprinted PCBs and squeegees in the same cabinet. Separate 60 L liquid and 60 L water tanks keep the wash and rinse circuits apart, a 9 kW heater holds cleaning temperature, and a full cycle still finishes in 3–5 minutes. Stencil size up to 750 × 750 × 40 mm.
View model & specs
What a Stencil Cleaning Machine Fixes on Your SMT Line
Stencil cleaning is a small process that decides a large share of your first-pass yield. These are the four problems a proper stencil cleaning machine is bought to solve.
Paste Blocking Fine-Pitch Apertures
Solder paste left in the apertures is the earliest cause of insufficient and bridged joints. A timed cleaning cycle clears them before they reach the printer again.
Misprinted PCBs and Red Glue
The same cabinet washes misprinted PCBs and red glue stencils, so a misprint no longer means scrapping the board or pushing a defective panel down the line.
Flux Residue and Solvent Consumption

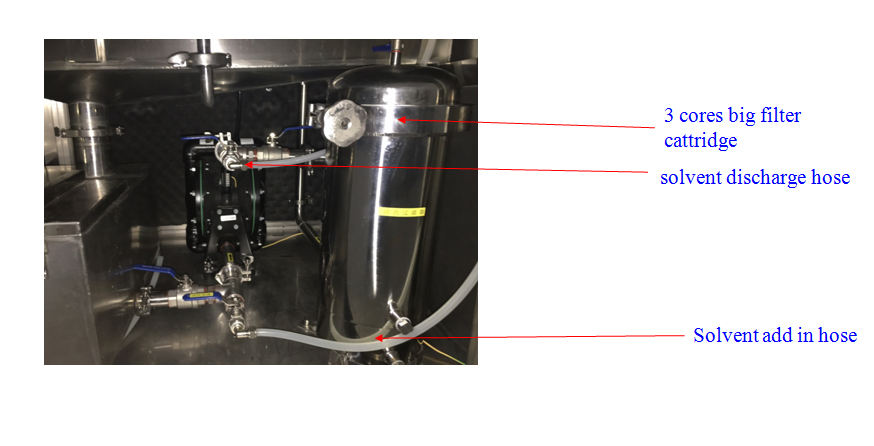

Liquid passes a 1 mm SUS 304 mesh, a 20 µm filter bag and 1 µm filter elements before being recirculated, so solvent is reused and waste volume drops.
Operator Safety and Machine Uptime
Inner-lock safety doors and safety valves stop the machine the moment a door is opened, and a modular build keeps maintenance down to filter changes and nozzle checks.
Stencil Cleaning Machine Specifications at a Glance
One platform family, three configurations. Tell us your stencil size, cleaning chemistry and site voltage, and we will confirm the model, drawing and lead time within 24 hours.
- Stencil sizeUp to 750 × 750 × 40 mm as standard
- Cleaning methodPneumatic spray, ultrasonic, or heated electric
- Cycle time3–5 min cleaning, 3–5 min drying
- Tank capacity40 L pneumatic; 60 L liquid + 60 L water on electric
- Filtration3-stage: 1 mm SUS 304 mesh, 20 µm bag, 1 µm elements
- Drying360° double-side nozzle air blow dry
- Air supply0.5–0.8 MPa, 400–600 L/min on pneumatic models
- MaterialsSUS 304 body and pipework, acid and alkali resistant
- SafetyInner-lock door and safety valve, stops immediately on opening
- ComplianceCE certified, one-year warranty, OEM and ODM builds

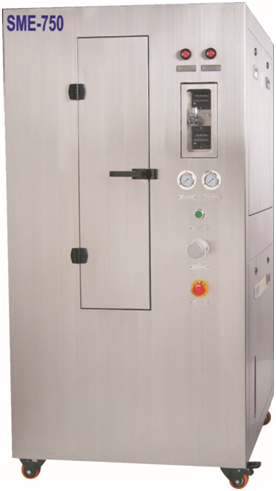

SME-750 pneumatic stencil cleaning machine — SUS 304 cabinet, 40 L tank, 360° rotary spray rods, 230 kg, 800 × 950 × 1650 mm.
Custom & OEM Stencil Cleaning Systems
Standard models cover most lines. When they do not, we build to your drawing instead — this is the part of the business our repeat customers come back for.
Custom Stencil SizeOversized or non-standard frames: send the dimensions and we size the cabinet, spray rods and tank around them rather than the other way round.
Custom Voltage and Power220 V or 110 V, 50 or 60 Hz, single or three phase, with heater power matched to the supply on your site.
Custom Cleaning ChemistryWater-based, solvent-based or hybrid cleaning specified around the paste, flux and red glue you actually run.
Custom Tank and FiltrationTank capacity, separate wash and rinse circuits, filtration stages and recirculation set to your throughput and waste rules.
OEM and ODM BrandingColour, labels, nameplate, manual and packaging under your own brand, with SAMTRONIK staying the factory behind the product.
Documentation and ComplianceCE documentation, dimensional drawings, operation manuals and inspection reports prepared for your import and audit requirements.
3 results
ViewShowcase
One key operation; wash+rinse process are completed automatically.
SME-730: spray-in-air first cleaning, ultrasonic final cleaning, spray-in-air rinsing, excellent cleaning effect.
Electric Stencil Cleaning Machine apply for cleaning matal stencil,red glue stencil ,misprinted PCB , squeegee etc .
From Drawing to Delivery: Custom Stencil Cleaning Systems
Custom and OEM orders follow the same five steps, whether you are changing one parameter or designing a new stencil cleaning machine around your process.
- Send your specificationStencil size and frame type, paste, flux or red glue in use, site voltage, throughput per shift and any waste-handling rules.
- Confirmation within 24 hoursWe come back with the recommended model or configuration, an outline drawing and a confirmed lead time.
- Drawing approvalYou sign off cabinet dimensions, nozzle layout, tank arrangement and control panel before anything is cut.
- Build and function testThe machine is built to the approved drawing and run through a full cleaning cycle test — with our own stencils — before packing. Test records are shared with you.
- Packing and shippingFumigation-free crating, documentation matched to the invoice, and shipping by sea, air or express as your customs process requires.
Built, Tested and Packed Before It Ships
A custom stencil cleaning machine is only useful if it arrives as drawn. These are the three stages every order passes through between drawing approval and your container.
Built and assembled in house
Cabinet fabrication, SUS 304 pipework, tank assembly and spray-rod fitting all happen in our own Shenzhen workshop, so a custom change is made on the factory floor rather than passed to a subcontractor.

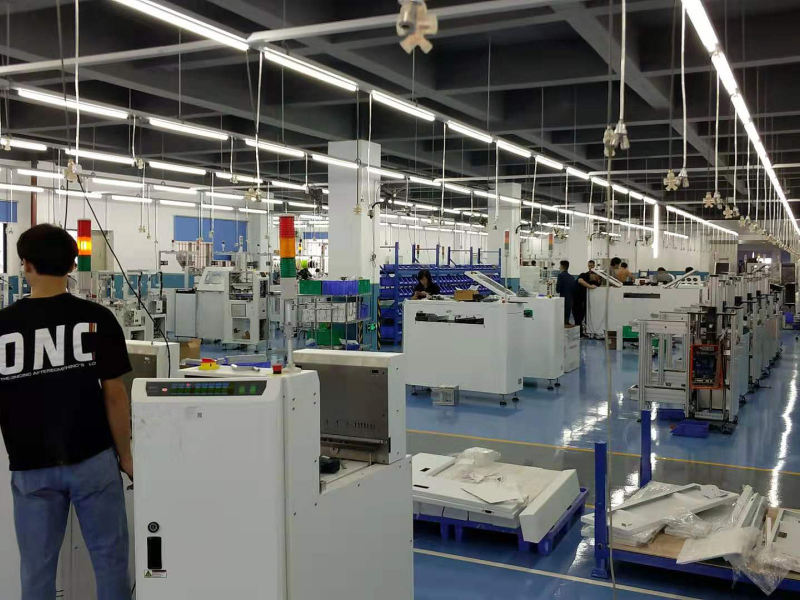

Checked before it is packed
Every unit runs a complete wash, rinse and dry cycle before it leaves the line, and the test record is kept on file against your order number for later reference.
Packed for export
Fumigation-free crating with export documentation matched to the invoice, shipped by sea, air or express so the machine clears customs without unpacking problems.
Why SMT Teams Buy Their Stencil Cleaning Machine From SAMTRONIK
Most of our stencil cleaning machine business comes from repeat orders. The machine arrives built to the drawing, and the support continues after delivery.
CE Certified, One-Year WarrantyEvery stencil cleaning system ships with CE documentation and a one-year warranty that stands up in an import or factory audit.
Reply Within 24 HoursSpecifications, drawings and lead times are answered in English by the same engineers who build the machines.
Tested Before ShipmentEach unit runs a complete wash, rinse and dry cycle before packing, with the test record kept on file.
Export Packing and ShippingFumigation-free crates and full export documents, shipped by sea, air, DHL, UPS or FedEx to suit your market.
