Pcb Handling Equipment
PCB HANDLING EQUIPMENT · PCB ASSEMBLY EQUIPMENT · MADE IN CHINA
PCB Handling Equipment for Every Stage of Your SMT Line
SAMTRONIK is a PCB handling equipment manufacturer based in Shenzhen, China, building the machines that move, buffer, clean and label boards between the printing, mounting and reflow stages of an SMT line. The range covers PCB handling conveyors, magazine loaders and unloaders, vertical stock buffers, PCB surface clean machines, PCB labeling machines, semiconductor loaders and infrared curing furnaces. Every unit is SMEMA-compatible, built to the 910 ± 30 mm line height standard, CE certified and backed by a one-year warranty, with OEM and custom builds at factory-direct pricing.
7 familiesmoving, buffering, cleaning, labelling and curing
910 ± 30 mmstandard line height across the range
SMEMAcompatible interface, drop-in integration
OEMcustom builds, CE certified, one-year warranty
Browse PCB Handling Equipment by Category
Seven product families cover the whole line. Open the category that matches the bottleneck you are trying to remove — not sure which one that is? Start with the last card.
PCB Conveyor Systems
The core of any PCB handling equipment set: inspection, linking, telescopic gate, reject, flipper, turn and shuttle conveyors. Chain or belt conveying in 0.5 m, 0.6 m, 0.7 m and 1 m lengths, single or dual track, custom lengths on request.
Open category
PCB Loader & Un-Loader
The PCB loader unloader pair that starts and finishes the line: magazine loaders, unloaders, destackers and inverters, including dual-track models. SMEMA-linked to the printer at the front and the AOI or unloader at the back.
Open category
Stock Buffer

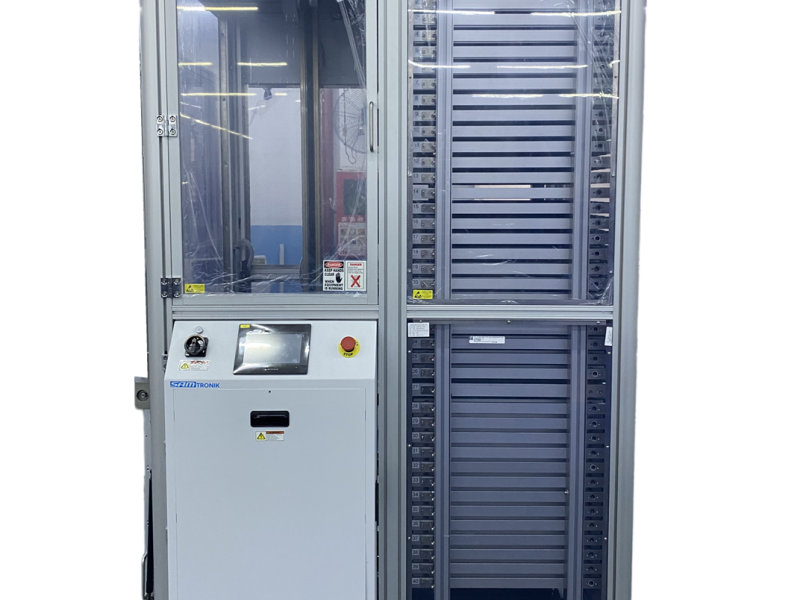

Vertical buffers that absorb cycle-time differences between machines so a slow mounter never starves the printer. FIFO and LIFO layouts, SPI and AOI buffering, panel buffers and turn buffers for line balancing.
Open category
PCB Surface Clean Machine

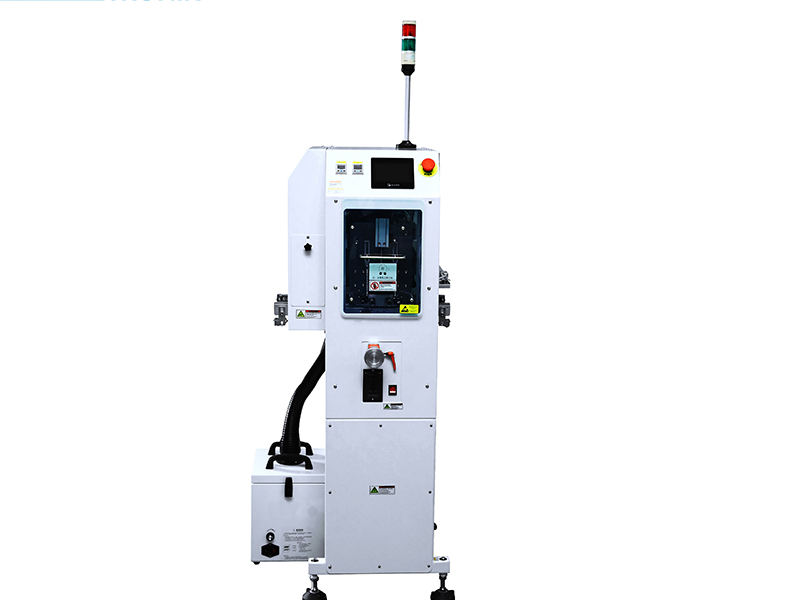

A PCB surface clean machine and deduster that removes dust and micro-particles before printing and before conformal coating — fewer print defects, fewer stencil cleans, better coating adhesion.
Open category
Labeling Machine

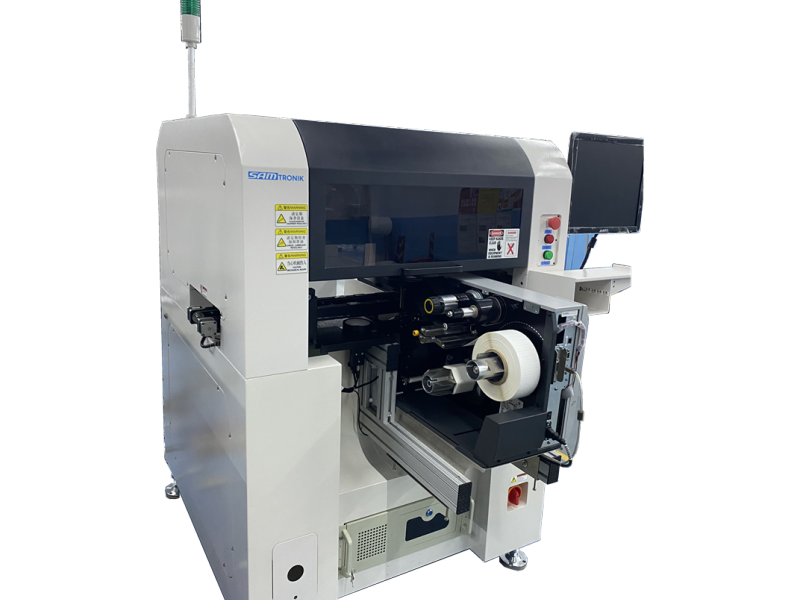

An automatic labeling machine for PCB that places serial, barcode and traceability labels inline. Adds a controlled labelling step without a manual station or a stop in the flow.
Open category
Semi-conductor Loader & Un-Loader

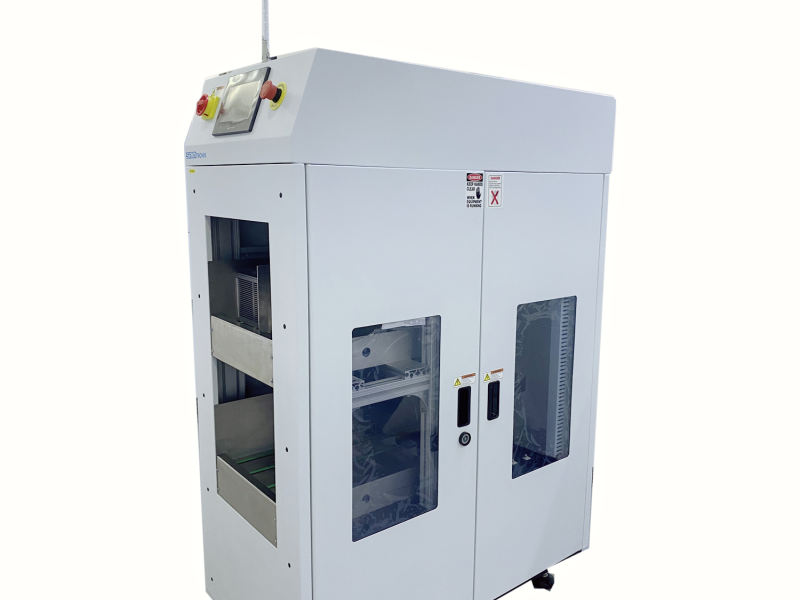

Semi-conductor loader and unloader machines that handle trays and carriers for semiconductor assembly, sharing the same SMEMA interface and line height as the rest of the SMT handling equipment range.
Open category
Infrared Luminous Furnace

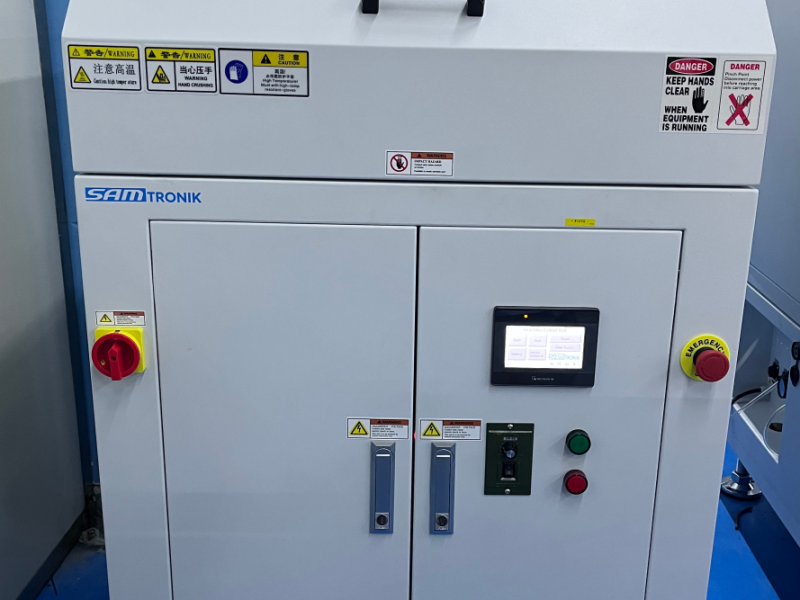

An infrared curing oven for coating and conformal-coat lines, with 0.8 m and 3 m heating sections. Infrared luminous tube heating holds an even cure across the panel instead of baking the edges first.
Open category
Not sure which category you need?
Send us your board size, line layout, cycle time and the bottleneck you are trying to remove. We will tell you which PCB handling equipment solves it first — and which of the seven categories you can leave for later.
Ask an engineer
The Four Jobs PCB Handling Equipment Does on a Line
Whatever the model, PCB manufacturing equipment on an SMT line is bought to do one of four jobs. Shopping by job is faster than shopping by machine type.
Moving Boards Between Machines
PCB handling conveyors and transfer conveyors carry panels from loader to printer, through mounters and reflow, and back to the unloader — with SMEMA handshaking so nothing arrives early or late.
Feeding In and Collecting Out

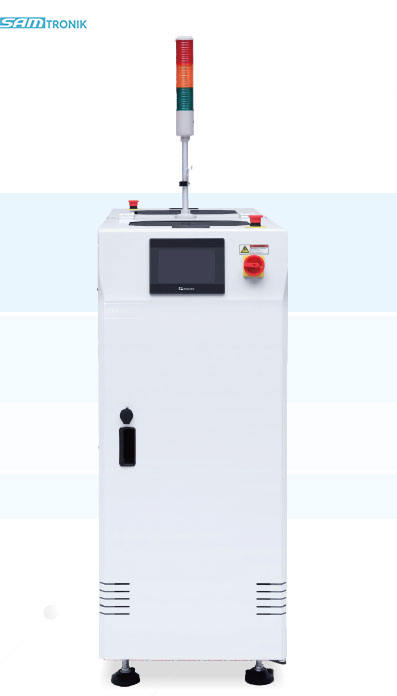

A PCB magazine loader and unloader turn a stack of boards into a continuous flow, and stack finished panels back into magazines at the exit without manual handling or scratches.
Absorbing Cycle-Time Differences
Stock buffers hold work in progress between machines with different takt times. That single addition is often what turns an unbalanced line into one that finally runs at its rated output.
Cleaning, Labelling and Curing
Surface cleaning before printing, traceability labelling after assembly, and infrared curing on coating lines — the preparation and finishing steps that decide yield and traceability.
What We Need to Specify Your PCB Handling Equipment
Most handling equipment is quoted wrong because one of these parameters is missing. Send all nine and we will confirm the model, drawing and lead time within 24 hours.
- Board sizeFrom 50 × 50 mm up to 550 × 550 mm on standard models
- Conveying typeEdge belt, flat belt or chain conveying; single or dual track
- Line height910 ± 30 mm standard, matched to the line you already run
- Component clearance± 30 mm above and below the board
- InterfaceSMEMA-compatible; Fuji Nexim and Panasonic iLNB docking available
- Magazine and bufferMagazine capacity and FIFO or LIFO buffer levels set to your hourly output
- Fixed rail1-3 fixed or 1-4 fixed rail options on dual-track handling models
- Power220 V 50/60 Hz standard, 110 V available
- ComplianceCE certified, one-year warranty, OEM and custom builds
Handling equipment is specified by the line it joins, not by the machine alone — line height, SMEMA interface and board size decide what will actually fit.
Custom & OEM PCB Handling Equipment
Standard models cover most lines. When the layout does not fit a catalogue machine, we build to your drawing instead.
Custom Board and Panel SizeNon-standard panels: we size rails, belt width and magazine capacity around your board rather than forcing it into a standard model.
Custom Line ConfigurationSpan customisation, extra or reduced fixed rails, dual track, left-to-right or right-to-left flow, and docking to your existing printer or mounter brand.
Custom Voltage and Power220 V or 110 V, 50 or 60 Hz, single or three phase, matched to the supply available on your site.
Custom Buffering and CapacityBuffer positions, magazine capacity and cycle time set to your hourly output and the takt time of the machines around it.
OEM and ODM BrandingColour, labels, nameplate, manual and packaging under your own brand, with SAMTRONIK staying the factory behind the product.
Documentation and ComplianceCE documentation, dimensional drawings, operation manuals and inspection reports prepared for your import and audit requirements.
46 results
ViewShowcase
1.Infrared Luminous Furnace; 2.Infrared curing oven; 3. Infrared curing oven for Coating line;
1，Infrared Luminous Furnace; 2, Infrared curing oven; 3, Infrared curing oven for Coating line;
This conveyor is used to load PCB’s or pallets into a wave soldering machine at 6-7° angle.

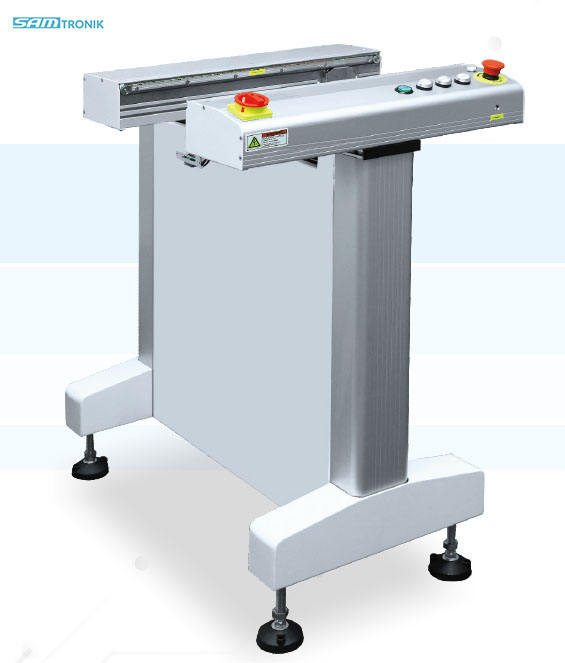

100cm length PCB Linking Conveyor ,PCB Inspection Conveyor ; Chain or belt conveying .
Labelling machine + Zebra printer and feeding to Labelling machine + MES interface with printer
Dual Track PCB Invertor is used in double track production line, turning PCB (180 °) into "double-sided" process.

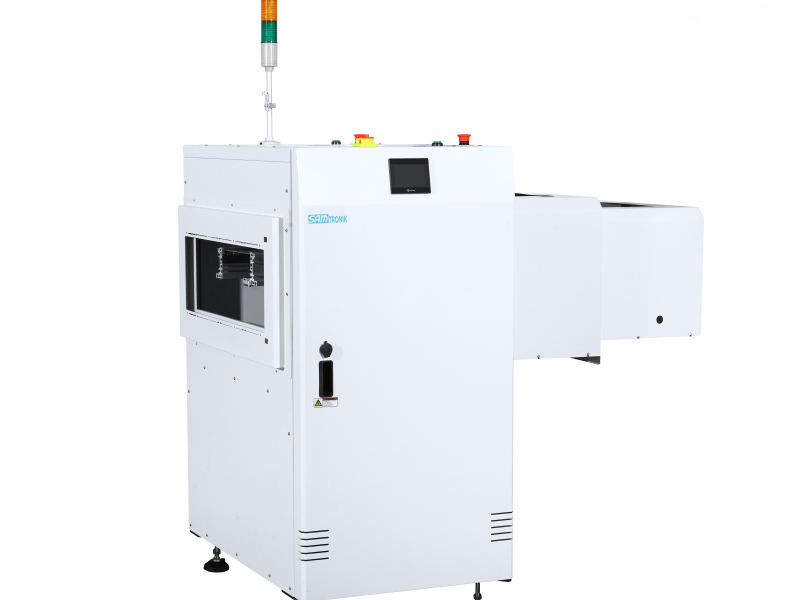

Telescopic Gate Conveyor for electronic assembly line
The device is used in the back end of AOI and SPI for inspection NG OK board .
The Shuttle Conveyor used to adjust products to different directions and paths.
The equipment is easy to adjust width and fast to change line.
From Drawing to Delivery: Custom PCB Handling Equipment
Custom and OEM orders follow the same five steps, whether you are adjusting one parameter or building a handling machine to a layout that does not exist yet.
- Send your specificationBoard size and panel layout, line height, the printer and mounter brands already on the line, cycle time per shift, site voltage and available floor length.
- Confirmation within 24 hoursWe come back with the recommended category, configuration, an outline drawing and a confirmed lead time.
- Drawing approvalYou sign off rail positions, conveying width, magazine or buffer capacity and the control panel before anything is cut.
- Build and function testThe machine is built to the approved drawing, then run through a full transport and SMEMA handshake test at your board dimensions and line height before packing.
- Packing and shippingFumigation-free crating, documentation matched to the invoice, and shipping by sea, air or express as your customs process requires.
Built, Tested and Packed Before It Ships
PCB handling equipment is only useful if it joins your line on the first attempt. These are the three stages every order passes through between drawing approval and your container.
Built and assembled in house
Frames, rails, belt drives and control panels are fabricated and assembled in our own Shenzhen workshop, so a custom change is made on the factory floor rather than passed to a subcontractor.
Checked before it is packed

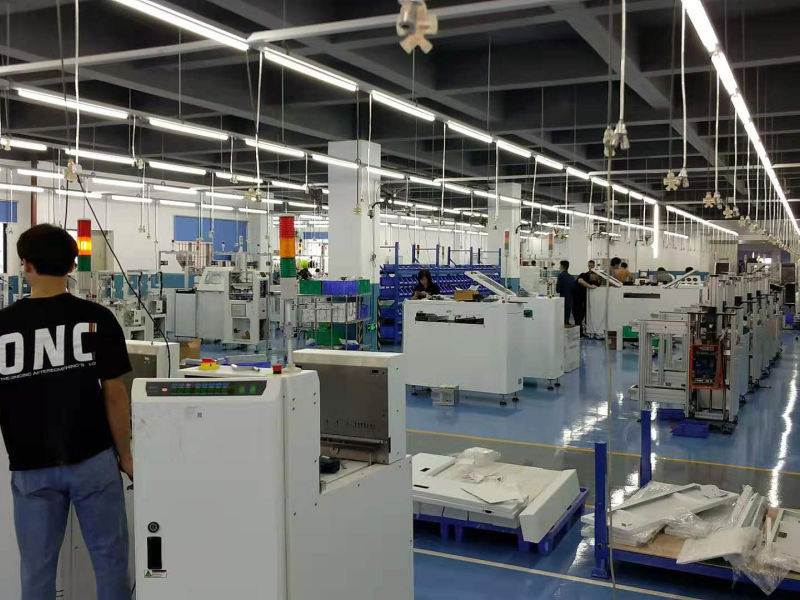

Every unit runs a complete transport and handshake test before it leaves the line, and the test record is kept on file against your order number for later reference.
