PCB Double-sided Cleaner-SM-2A050

PCB Double-sided Cleaner-SM-2A050

PCB Double-sided Cleaner-SM-2A050
PCB Double-sided Cleaner-SM-2A050PCB Double-sided Cleaner-SM-2A050PCB Double-sided Cleaner-SM-2A050PCB Double-sided Cleaner-SM-2A050PCB Double-sided Cleaner-SM-2A050
CategoriesPCB Surface Clean Machine
BrandSAMTRONIK
ModelSM-2A050
InterfaceSMEMA
Transmission height910mm±30mm
PCB component heightA 0MM/B 0mm
Power0.1KW
Download DOCpdf icon
Update TimeMar 29,2024
Detail Information

               SM-2A050-PCB Double-sided Cleaner

Description:

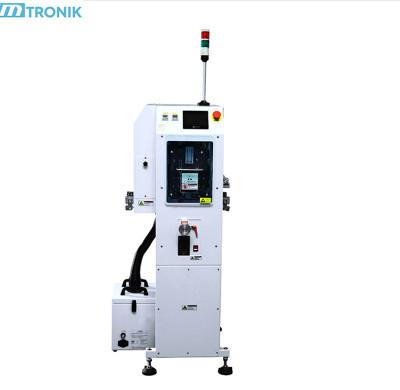

The equipment is used for cleaning and electrostatic removal of printed products at the front end of the wire body. Precise track design, electrostatic powder coating on the surface, perfect combination of aluminum profile frame and sheet metal to ensure process stability and excellent durability.

The necessity of using PCB cleaner

1. Dust and dirt may be stuck on the surface of PCB during the handling, laser marking and parking of PCB.

2. The static electricity on the PCB surface causes the PCB to absorb dust.

3. SMT components will become smaller and smaller, and small stains may affect the welding effect.

4. Some large stains may cause short circuit or potential defects of the solder joint.

5. At present, many customers use high-pressure air to clean PCB surface, which has become a fact with high noise, high energy consumption, secondary air pollution, etc.

6. Before and in the future, cleaning and removing static electricity on the surface of PCB chip money will become a part of the process.

Feature:

1. Contact cleaning is more durable and clean, mainly to deal with dust pollution on PCB surface

2. Special structure, effectively clean 99% visible pollutants on PCB surface

3. The latest electrostatic removal technology, positive and negative ions exceed the industry standard

4. Newly developed anti-static brush dedusting device

5. Newly developed anti-static roller dust adhering device

6. Dust adhering paper roll: special polymer material has anti-static function

7. The best adhesive coating thickness improves the foreign body daughter-in-law and catching power

8. Support real-time monitoring of electrostatic pressure

9. Alarm device for blockage of foreign matters in pipeline of vacuum dust collection system

10. Provide and develop relevant interfaces for MES and external system docking

11. CE highest safety level design

12, specially customized for SMT mounting

Specification :

Configuration



Transmission height

910mm±30mm

Conveyor belt

3MM Flat belt

Interface

SMEMA

Transmission direction

Left to right / right to left (optional)

Fixed guide rail

Front part of machine

Transmission  composition

1-segment

Width adjustment mode

Manual adjustment

PCB size



PCB sizeL*W)

80*70mm~530*460mm

PCB thickness

0.6~4.0mm

PCB component height

A 0MM/B 0mm

PCB weight

≤1.5KG

Cleaning & electrostatic system



Cleaning method

Brush + vacuum + electrostatic removal + dusting roller + dust collection roll + electrostatic removal + monitoring system (shape support upload)

Sticky dust and dust collection

2 + 1 / antistatic special material

Dust removal brush



Antistatic device

1 set for each inlet / outlet

Vacuum recovery



Installation requirements



Power Supply

220V 50/60HZ ±10%

Power supply system

L1+N+PE

Power

0.1KW

Gas source

0.6MPa

Air consumption

10L/min

Power plug type

European standard, American Standard, British standard... (optional)

Machine description



L*W*H

490*946*1380mm

Machine weight

180kg

Fixed point to front dimension (x)

185mm

Noise level

75 dB

Option:

A-single machine automatic width adjustment

B- attend to board system system

C-fuji Nexim, Panasonic ilnb system docking

D-CE security interlock

E- Electrostatic monitoring system

F- Air pressure monitoring system

G- Anti PCB warping device

H- Brush dedusting system

I- other
