Pcb conveyor systems
PCB HANDLING EQUIPMENT · MADE IN CHINA
PCB Conveyor Systems for Every Step of Your SMT Line
SAMTRONIK is a PCB conveyor system manufacturer and supplier based in Shenzhen, China, producing SMT handling equipment in our own factory for over a decade. We build SMEMA-compatible chain and belt conveyors — inspection, linking, telescopic gate, reject, flipper, turn and shuttle types — in standard 0.5 m, 0.6 m, 0.7 m and 1 m lengths, and build custom width, height and conveying length to match your board size and existing line layout. Every unit ships with CE certification, a one-year warranty and overseas engineering support at factory-direct pricing.
17conveyor models covering the whole SMT line
0.5–1 m+standard lengths, custom builds on request
SMEMAinterface, 910 ± 30 mm line height
CEcertified builds, one-year warranty
Browse Conveyor Types
The six models SMT engineers specify most often. Each one solves a different handover problem on the line — start with the position you need to fix.
PCB Inspection Conveyor

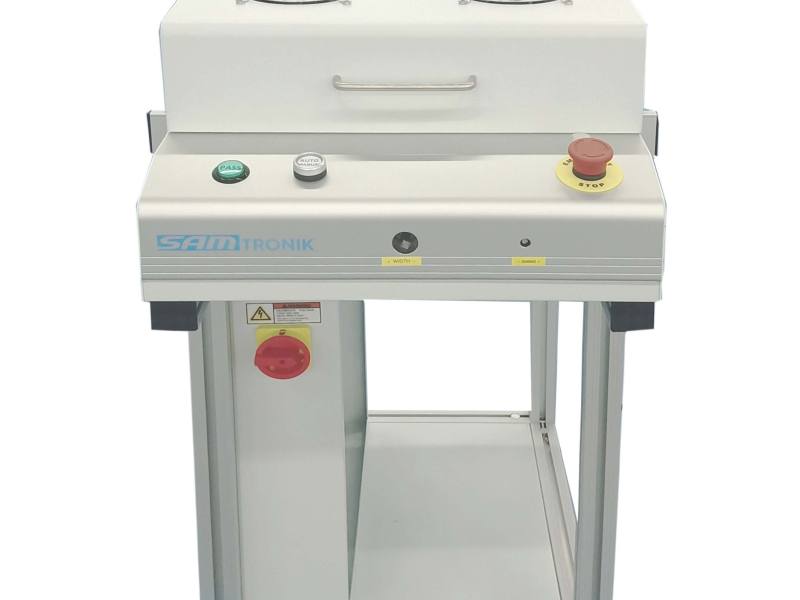

A 1000 mm chain or belt conveyor with built-in cooling fan and one conveyor stop, placed straight after printing or reflow. 1000 × 876 × 1056 mm frame, 75 kg, with optional LED grid lighting and ESD-safe rails.
View model & specs
PCB Linking Conveyor

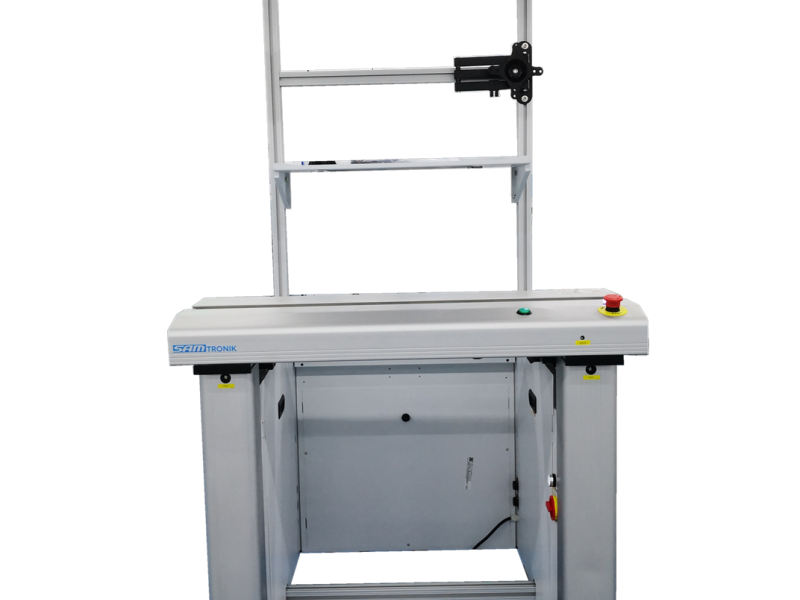

Precision linking conveyor with integrated lighting that hands boards between printer, mounters and reflow oven. SMEMA interface, 910 ± 30 mm transmission height, ± 30 mm component clearance, 0.5 kW drive.
View model & specs
Telescopic Gate Conveyor
Opens a walk-through passage inside a running line so operators can reach the printer or mounter behind it. SMH-3A150 with SMEMA interface and 0.5 kW drive; the 1500 mm version measures 1500 × 915 × 1300 mm.
View model & specs
PCB Reject Conveyor

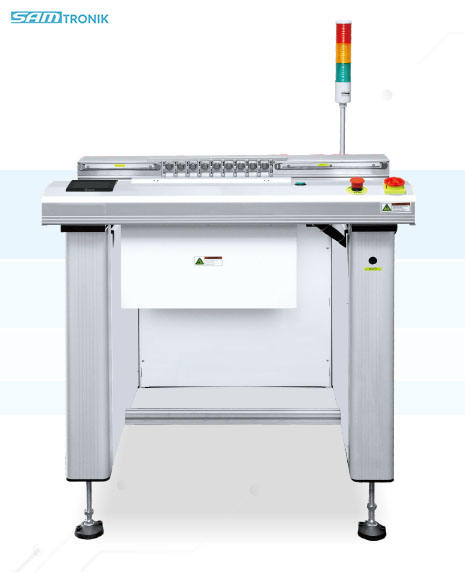

Installed behind AOI and SPI to separate NG from OK boards, so defects leave the flow before the next process adds cost. SMEMA interface, 910 ± 30 mm transmission height, 0.5 kW drive.
View model & specs
PCB Flipper / Inverter

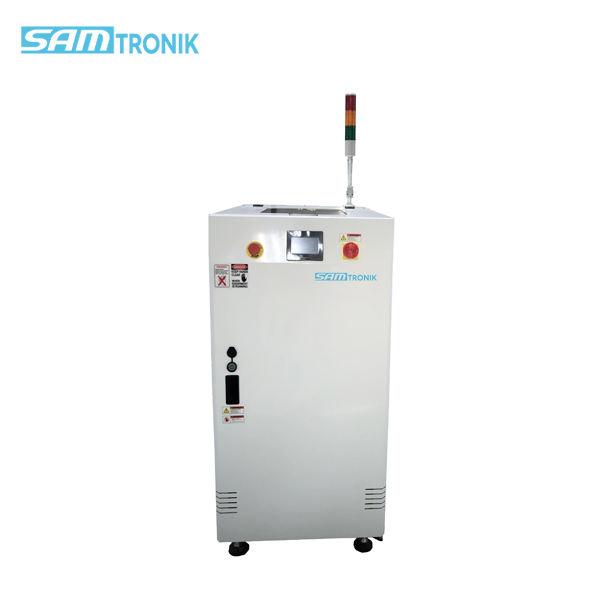

Inverts boards 180° for double-sided assembly, removing a manual handling step and the board damage that usually comes with it. Model SMI-1A050M, built to match your existing line height.
View model & specs
PCB Turn / Shuttle Conveyor

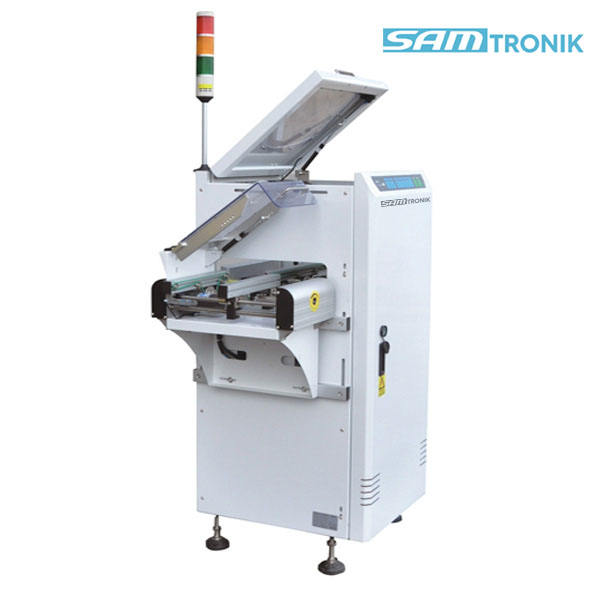

Rotates and redirects boards between line paths so you can merge, split or re-route production without touching the boards. SMJ-1A100L turn conveyor: 580 × 580 × 1200 mm, 100 W, 220 V / 110 V, stainless steel, CE.
View model & specs
Where the Conveyor Sits in Your Production Flow
A conveyor is rarely bought on its own — it is bought to fix one specific handover. Here is what each stage of the line actually needs, and which conveyor type answers it.
- LoadingBare boards or pallets enter from a magazine loader or destacker. Cycle consistency here sets the tempo for everything downstream, so this is where stoppages hurt most.
- Printing and MountingLinking conveyors carry panels between printer, mounters and reflow oven. SMEMA handshaking plus a 910 ± 30 mm line height keeps the transfer synchronised with no adapters or rewiring.
- Buffering and AccessStock buffers absorb cycle-time differences between machines, while telescopic gate conveyors open a passage for operators when a printer or mounter needs attention.
- InspectionInspection conveyors hold boards steady under AOI and SPI; reject conveyors pull NG units out of the flow before the next process adds value to a defective board.
- UnloadingTurn, shuttle and outfeed conveyors route finished boards to the next process or stack them into magazines at the line exit without manual handling.
Typical line flow: Loader → Printer → Mounter → Reflow → AOI → Unloader
Specifications at a Glance
Every conveyor in this category is built on the same platform, so you can order one unit now and extend the line later without compatibility surprises. Send us your board size, line height and available floor length, and we will confirm the right model, drawing and lead time.
- Conveying typeChain or belt conveying, edge belt or flat belt
- Standard lengths0.5 m / 0.6 m / 0.7 m / 1 m, 100 cm conveying length common, custom on request
- Line compatibilitySMEMA-compatible interface, 910 ± 30 mm conveying height, ± 30 mm component clearance
- AdjustabilityHeight-adjustable legs, manual or motorised width adjustment
- OptionsCooling fan, LED lighting, ESD-safe rails, telescopic gate, conveyor stop
- Power220 V 50/60 Hz standard, 110 V available, 0.5 kW typical drive
- Build and complianceStainless steel or aluminium frame, CE certified, one-year warranty
- ServiceOEM and custom builds, engineers available to service machinery overseas

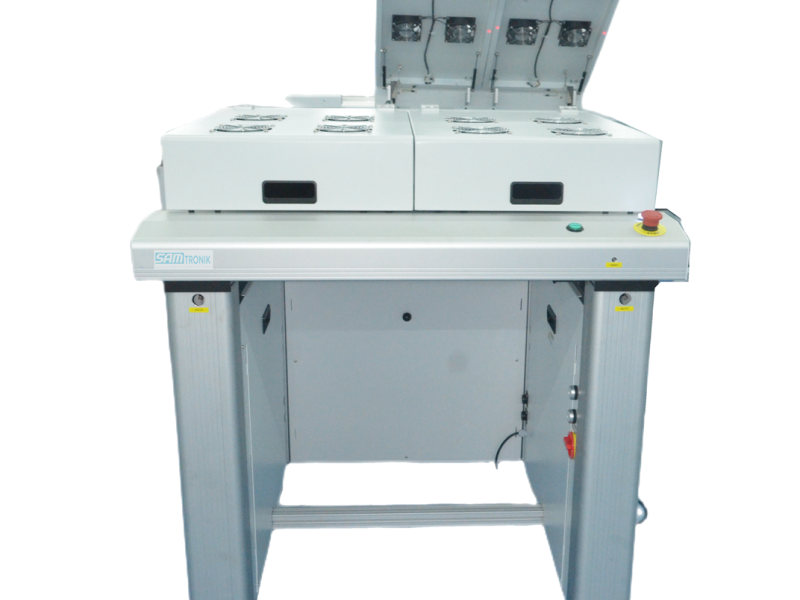

PCB inspection conveyor with cooling fan — 1000 × 876 × 1056 mm, 75 kg, one conveyor stop, one-year warranty. This is the platform most SAM-standard conveyors are built from.
17 results
ViewShowcase
This conveyor is used to load PCB’s or pallets into a wave soldering machine at 6-7° angle.
100cm length PCB Linking Conveyor ,PCB Inspection Conveyor ; Chain or belt conveying .
Telescopic Gate Conveyor for electronic assembly line
The device is used in the back end of AOI and SPI for inspection NG OK board .
The Shuttle Conveyor used to adjust products to different directions and paths.
100cm length PCB Linking Conveyor ,PCB Inspection Conveyor ; Chain or belt conveying .
Precision Linking Conveyor for smt assembly line ,PCB chain conveyor
Precision Linking Conveyor for smt assembly line ,PCB chain conveyor
This PCB Flipper is used to invert/flip PCB’s (180°) for ‘double-sided’ process.
This conveyor is used to unload PCB’s or pallets from a wave soldering machine at 6-7° angle.
PCB Turning conveyor,pcb conveying machine ,conveyor for pcb assembly
100cm length PCB Linking Conveyor ,PCB Inspection Conveyor ; Chain or belt conveying .
The Telescopic Gate Conveyor is used for creating a passage in the PCB assembly line to give the operator access .
Four Things SMT Buyers Check Before Ordering
Every conveyor quotation is judged on the same four points. Answering them up front is what turns a specification sheet into a purchase order — so these are the four we make sure are settled before we quote.
SMEMA-Compatible and Easy to Integrate
Your new conveyor has to talk to the machines on either side of it from the first shift, not after a week of rewiring.
- SMEMA standard interfaces across the range
- 910 ± 30 mm conveying height, ± 30 mm component clearance
- Links loader, printer, mounter, AOI and unloader directly
Full Specs and Custom Lengths
Catalogue sizes rarely match the gap you actually have on the factory floor, which is why we build to the drawing.
- Chain or belt conveying, edge belt or flat belt
- 0.5 m / 0.6 m / 0.7 m / 1 m standard, 100 cm conveying length common
- Width, height and length built to your board size and line layout
Reliable, Low-Maintenance Operation
A conveyor is the least expensive machine on the line, but a stopped conveyor stops everything behind it.
- 0.5 kW drives, stainless steel or aluminium frames
- ESD-safe rails and smooth transfer for bare and populated boards
- Cooling fan, LED lighting and conveyor stop options
Factory Price, Fast Delivery, OEM
Buying from the factory removes the trading margin and the guesswork about who actually builds the machine.
- Working directly with the manufacturer in Shenzhen, China
- OEM and custom builds under your own brand
- Specs, drawing and lead time confirmed within 24 hours
Complete the Line
The conveyor types at the top of this page cover the most common positions. These three finish the rest of the line — soldering, manual assembly and board handling between processes.
PCB Solder Infeed Conveyor

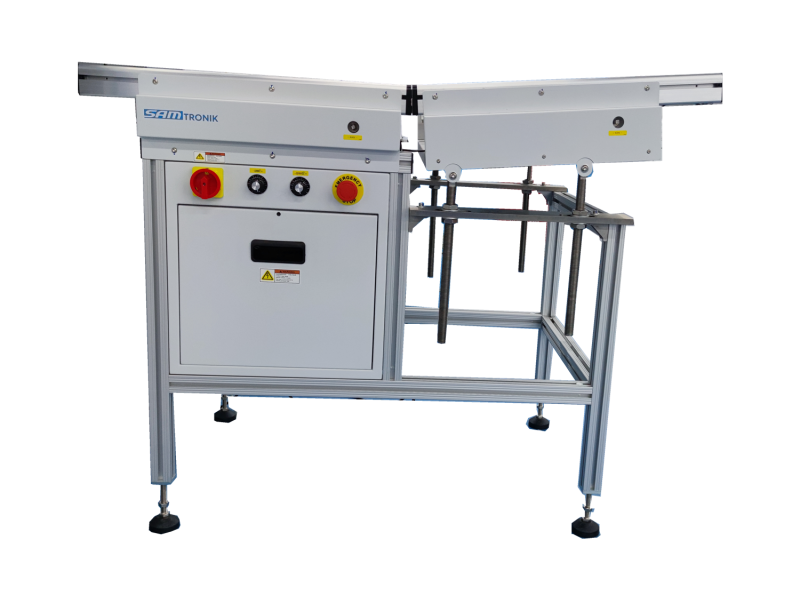

Model SML-1B120XL. Feeds boards or pallets into a wave soldering machine at a 6–7° incline, so panels meet the solder wave at a consistent angle instead of being loaded by hand.
View model & specs
PCB Solder Outfeed Conveyor

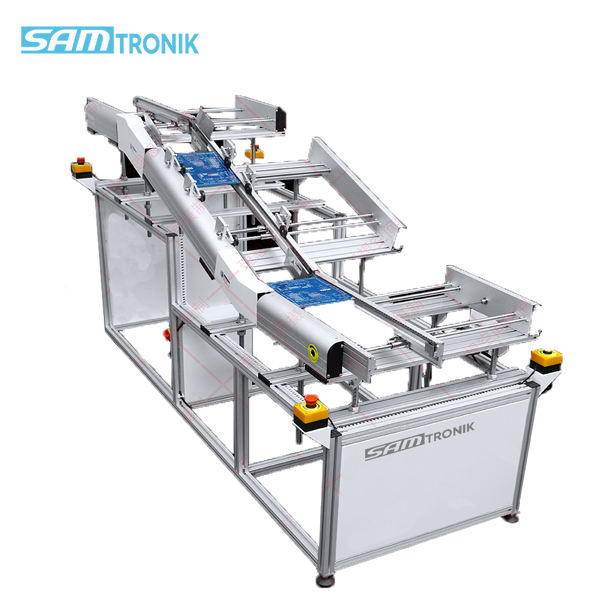

Model SML-1A120L. Takes boards and pallets off the wave soldering machine at the same 6–7° angle, keeping the soldering section a closed, hands-off loop.
View model & specs
Manual Insertion Conveyor

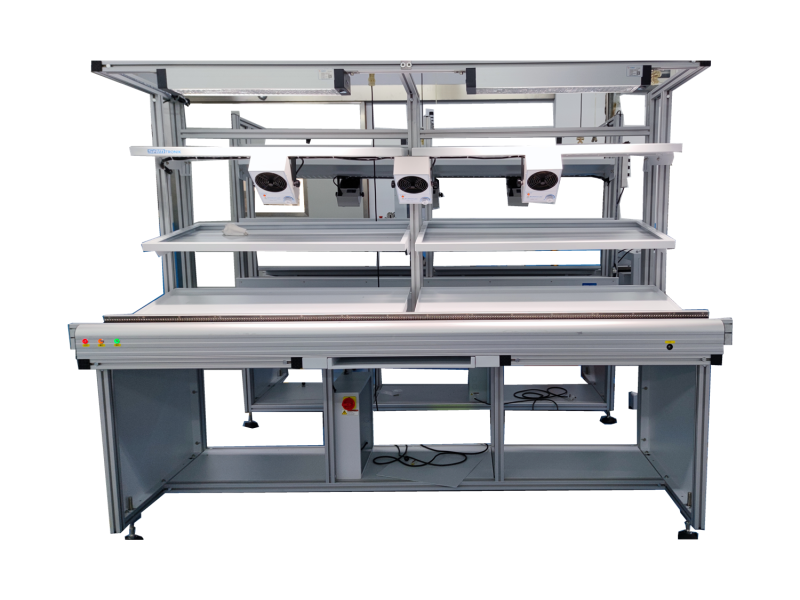

Model SMA-1W0240XL. A 2400 mm station for hand-placed through-hole parts: 1–6 m/min variable speed, 10 kg load, board sizes up to 550 × 550 mm, and an LED grille lamp that switches on automatically when an operator approaches.
View model & specs
Why SMT Teams Order Conveyors From SAMTRONIK
Most of our conveyor business comes from repeat orders and referrals. The reason is simple: the machine arrives built to the drawing, and the technical support does not stop at delivery.
CE-Certified BuildsEvery conveyor and loader ships with CE certification, a one-year warranty and documentation that stands up in a customer or factory audit.
Reply Within 24 HoursSpecifications, drawings and lead times are answered by engineers who build the machines, usually within the same working day.
Export Packing and ShippingFumigation-free crating, export documentation and shipping coordination to your port or door, with the packing list matched to the invoice.
Overseas Service SupportEngineers are available to service machinery overseas, with spare parts and remote guidance for commissioning and after-sales.
