SMT Nozzle Cleaning Machine

SMT Nozzle Cleaning Machine

SMT Nozzle Cleaning Machine
CategoriesNozzle Cleaning Machine
FOB portShenzhen
Terms of PaymentT/T
Update Time2021-07-29
Detail Information

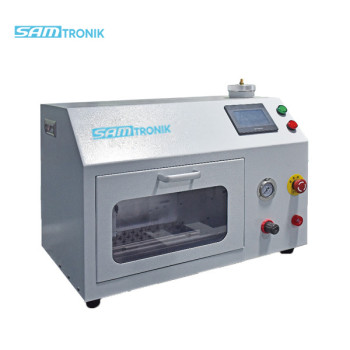

Nozzle Cleaning Machine

SM-30 nozzle cleaning machine with automatically cleaning and drying system, mainly used for cleaning smt small components, such as: 0603,0402,0201,1005 high precision nozzle.

Main features:

○ Appearance with streamline design, elegant appearance;
○ Clean 30 nozzles in one time, to achieve high efficiency, energy saving;
○ Full inspection window for easy maintenance and operation;
○ Part of all contact with water, 304 stainless steel, rust, corrosion, strong and stable;
○ Human design, press external buttons to achieve start and stop;
○ Touch screen + PLC distributed control, stable and reliable performance;
○ Easy to operate, user-friendly, can switch at any time in English.
○ Having a malfunction alarm and emergency braking system, with overload protection system;
○ Use of environmentally clean industrial pure water (HP value softener 5-7);
○ Centralized waste collection, easy maintenance.

Technical parameters

Parameters of machine:

Dimensions (L * W * H)

500mm × 400mm× 550mm

Power supply (two-phase two-wire)

2P2W, 220VAC, 50/60Hz,20A

Power supply


Air source pressure

0.5 - 0.6MPa (normal operation)


Aprox. 40KG

Electrical control Parameters:

Total power


Controlling mode

touch screen + PLC

Air source

Pure compressed air

Jec pressure

≤ 0.4 MPa

Air wastage

Under 280NL / min

Liquid type

industrial purified water

Liquid consumption

300cc / hour

liquid storage capacity


Admission pipe/Drainpipe

¢ 8 / ¢ 6

Specifications of nozzle tray

default 30 Nozzles

Specifications of cleaning nozzle



35-60 dB
