Double tank Pneumatic Stencil Cleaning machine with Stainless steel

Double tank Pneumatic Stencil Cleaning machine with Stainless steel

Double tank Pneumatic Stencil Cleaning machine with Stainless steel
CategoriesStencil cleaning Machine
AlbumView larger image
Machine TypeIndustrial Washer
FeatureCritical Cleaning / Residue Free
UseDescaling / Stripping
Cleaning ProcessCold Water Cleaning
Cleaning TypeIndustrial Ultrasonic Cleaner
Industry UsedElectronic Industry
MaterialMetal / Coil
After-sales Service ProvidedOverseas service center available
Download DOC
Update Time2019-07-20
Detail Information

SM-8200  Stainless steel Double tank SMT stencil cleaner , Double cleaning room Pneumatic stencil

clean machine.




 1.Completely pneumatic operation without any fire risk. No electrical connection needed!

 2.Dual Bay design allows 2 stencils to be cleaned simultaneously for high speed throughput.

 3.Simple to use machine with intuitive controls. Cleaning and drying process is controlled with one-button operation.

 4.SM-8200 is designed for cleaning of solder paste, glue and silicone adhesive.

 5.Special nozzle design ensures high cleaning performance. Stencil tension is not affected during the cleaning process.

 6.Auto liquid feeding and draining system.

 7.Triplex filter system with precise exhaust design and control. Liquid can be recycled which results in lower solvent consumption.

 8.Internationally recognized critical components are used to ensure long term quality and reliability.

 9.Modular design to ensure easy maintenance.




Application stencil,glue screen ,copper screen
Application stencil size Standard 29 inch and below
Clean liquid capacity               Max 50L ,Min 30 L
Cleaning fluid volume 40L*2
Cleaning mothed :Rotary double side pressure injection and high pressure air praying ( cleaning and drying )
Clean time 2~4 min(stencil and copper net)
Rinse time 2~4 min(stencil and copper net )
Dry time 2~5 min
External air supply 0.4Mpa~0.6Mpa
Air consumption 400~600L/Min*2
Air outlet size Φ125*25mm
Weight 720Kg
Dimension 1450mm(L)*900mm(W)*2245mm(H)
Tin filter mothed Three class filter(10μm,5μm,1μm)



Double Cleaning tank Stencil cleaners

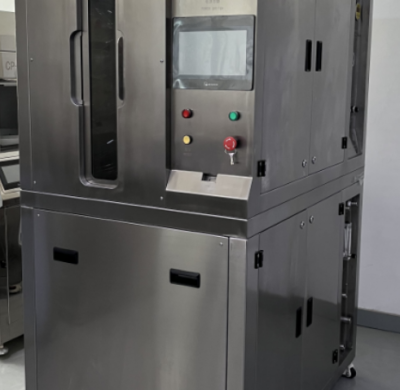

Exhibition Room


Pneumatic double tank SMT Stencil Cleaner


Our customer


Foxconn Group

 BYD Company

Flextronics group AOC
SHARP Group Salcomp
Skyworth TP-LINK
TCL  Topband



 For more informations , welcome inquiry us !
