SAM Assembled PCB Cleaning Machine

SAM Assembled PCB Cleaning Machine

SAM Assembled PCB Cleaning Machine
SAM Assembled PCB Cleaning MachineSAM Assembled PCB Cleaning MachineSAM Assembled PCB Cleaning MachineSAM Assembled PCB Cleaning Machine
CategoriesPCB/PCBA cleaning machine
AlbumView larger image
Machine TypeHigh Pressure Cleaner
FeatureCritical Cleaning / Residue Free
UseCleaning stencil
Cleaning Processwater-based cleaning
Cleaning TypeHigh Pressure Cleaner
Industry UsedElectronic Industry
MaterialMetal / Coil
After-sales Service ProvidedEngineers available to service machinery overseas
ApplicationStencil , Gule fixture ,PCBA ,PCB
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, T/T
Update Time2019-12-13
Detail Information

 SAM Assembled PCB Cleaning Equipment for PCB Assembly  line

Product Description


Water-based cleaner machine is a water-based cleaning process design  cleaning equipment. Fully automatic finish cleaning- rinsing- drying  process, the main application is stencil, plastic mesh, scraper, the furnace jig cleaning, etc.


The application fields :


SMT Stencil cleaning machine


Features :


1.Dedicated to water-based cleaning fluid to clean stencils, PCBA, etc. Process with high pressure spray system.


2.Double liquid tank, equipped with heating system, implementation needs cleaning and rinsing.


3.Technological process: cleaning chemical isolation - rinse (open loop/closed loop) - dry


4.Preparation of advanced automatic touch screen operating software, program files stored, used and its simplicity


5.Counting system function, can automatically accumulated cleaning sheet number and loop filter


6.Liquid and the pump pressure can be displayed through the panel pressure gauge, feedback the equipment running status


7.Window cleaning pressure can be adjusted independently, process is more wide, solve the SMT stencil tension in the process of high pressure cleaning problem

8.Drift lotion resistivity monitoring, ensure the cleanliness, the resistivity can be set up, meet the demand of different halftone technique.


9.Consumables monitor alarm filter service life

10.Integral stainless steel fuselage, strong and durable, resistant to acid, alkali cleaning fluid, etc

11. Floating lotion emissions filtering, more environmental protection

12.Effect of high pressure fan + hot air drying, drying more quickly and thoroughly

13. Lower running cost, every time only 12 l liquid cleaning, clean end use compressed air recycling pipeline and pump more than residual liquid, liquid consumption can reduce 50%




Apply screen size

Max 740mm(L) ×740mm(W) × 40mm(H)


Cleaning fluid capacity



Best liquid usage



Clean and risn method

Left-right moving high pressure liquid spray cleaning


Drying method

High pressure hot air(Optional super models)


Clean time

2-5 Min


Cleaning fluid separation time



Rinse time

2-5 Min


Rinse times

1-99times (adjustable)


Drying time



Cleaning liquid recycling

1μm (Micro filter: rosin, solder paste, flux and pollutants)


Rinse liquid emission filter

5μm (Micro filter: rosin, solder paste, flux and pollutants)


Liquid heating temperature

room temp~60°C



Less than 50 decibels


Range of resistivity tester



DI water supply



DI water pressure



DI water Gateway connecting pipe

1 Inch

Air supply

 0.45Mpa ~0.7Mpa


Power supply

AC380V 50HZ 65A


Total power



Net weight



Air out size




1600mm(L) ×1160mm(W) ×1850mm(H)

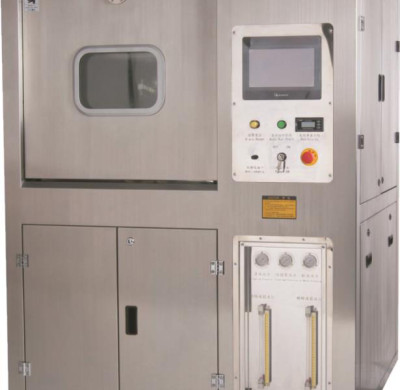

Pictures :

SMT Stencil cleaning machine


SMT Stencil cleaning machine

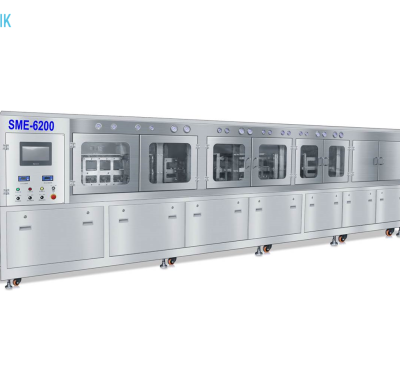

Other  Stencil cleaning machine Model option :

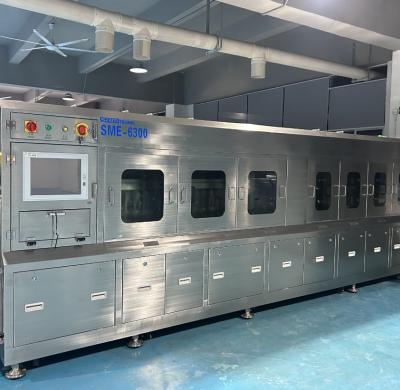

SAM Factory


SMT Stencil cleaning machine



SMT Stencil cleaning machine


Honor Customer


SMT Stencil cleaning machine
