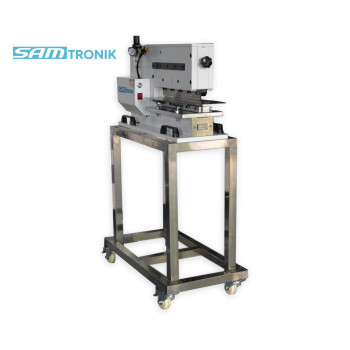

SM-620 Guillotine type PCB Separator

SM-620 Guillotine type PCB Separator

SM-620 Guillotine type PCB Separator
SM-620 Guillotine type PCB SeparatorSM-620 Guillotine type PCB SeparatorSM-620 Guillotine type PCB SeparatorSM-620 Guillotine type PCB Separator
CategoriesGuillotine type PCB Separator
AlbumView larger image
BrandSAMTRONIK
ModelSM-620
Shear Length0-330mm
Shear Width0-unlimited
Shear Thickness0.2-3.0mm
Shear Speedone segmentation per second
Blade Size356×45×6mm
Height of component≦15mm,when component is on upper side ≦19mm, when component is on back
Distance between component and V-slo≧3mm
Download DOC
Update Time2021-02-25
Detail Information
SM-620 PCB Depaneling Machine
Application
Separate precise SMD thin board, aluminum PCB, for special board , please check with Service.
Introduction
Apply latest pneumatic design of light weight, the
PCB could be separated in one time, with minimum
internal stress, especially suitable to separation of
precise SMD or thin board. Unlike double round
blade PCB separator, there won`t be any
bow wave or micro crack generated.
It uses wedge cutter to shear PCB in line, internal
stress decreases to lowest point, even the sensitive
SMD modules or capacitance still won`t be
influenced, then potential risk on quality is
minimized.
Cutter blade applies SKH-11 high speed steel
imported, also suitable to separate PCB without
V-slot
Features
1. Double straight blade, highly suitable to separate SMD thin board and aluminum PCB ;

2. Guillotine type, for PCB of thickness 0.2 to 3.0mm, cutting moving distance 1 to 3mm, safe operation;

3. keep internal stress within 80-180Ue, to avoid micro crack and damage to precise components;

4. able to shear edge of V-slot, distance from the component should 0.3mm ;

5. shear rate is one segmentation per second, control by foot-plate pneumatic switch ;

6. with calculation function, obvious vision on productivity ;

7. shear blade group is started passively, shear line and position can be handled safely ;

8. shear not by rolling blade, no dust, no motor drive, no pollution of carbon dust ;

9. shear is not by blade friction, so there is no residue from blade ;

10. Shear Blade warranty 6000000 times, no need electricity supply, then no consumption on electric equipment;

11. Air pressure 0.4-0.6Mpa, no need to prepare specific place for the shear ;

12. Could configure moveable working shelf, can move and operate conveniently.
Technique Parameter

Model

SM-620

Machine Dimension

680×250×450mm

Machine Weight

138KG

Moveable Shelf Size

720×755×420mm

Working Voltage

220V

Working Pressure

0.4-0.6Mpa

Power

16.8W

Shear Length

0-330mm

Shear Width

0-unlimited

Shear Thickness

0.2-3.0mm

Shear Speed

one segmentation per second

Blade Size

356×45×6mm

Height of component

15mm,when component is on upper side

19mm, when component is on back

Distance between component and V-Groove

3mm
