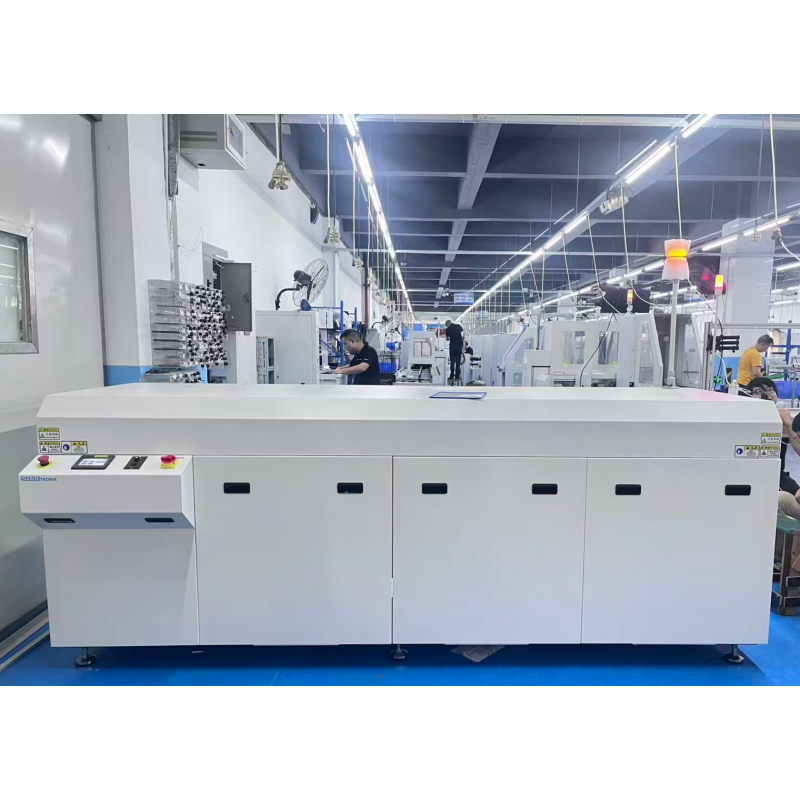

Infrared Luminous Furnace-3M
Detail Information
Product name: 3M Infrared Luminous Furnace
Model：SM-CSUV990(Front fix rail, direction: left to right, with HMI) (customized)
A brief introduction ：
An infrared curing oven is a machine that uses infrared radiation to quickly dry, bake, or cure coatings, inks, adhesives, or other materials on surfaces. It works by emitting electromagnetic waves that are absorbed by the target material, generating heat directly within it. This allows for fast, uniform, and energy-efficient curing compared to conventional hot air ovens. It is commonly used in industrial manufacturing processes, such as in automotive, printing, and electronics assembly lines.
Description:
1. Adjustable conveyor speed;
2, Conveyor running/ stop timer;
3, Temperature: 80-120 degree celcius;
4, Conveyor width: 50mm-330mm(Adjustable);
5, Each coating pallet weight: 1.5kg-2.0kg
Technique Parameter :
Transmission height ：910mm±30mm
Conveyor：Chain
Interface：SMEMA
Transmission direction: left to right
Transmission speed： 0.5~15M/minute(adjustable)
Fixed guide rail： Front part of machine
Transmission composition ：1-segment
Width adjustment mode ：Auto adjustment
PCB size：（L*W) Mini: 50*50mm Max: 460*330mm
PCB thickness： 0.6~4.0mm
PCB component height ：±30mm
PCB weight： ≤5.0KG
Power Supply ：220V 50/60HZ ±10%
Power supply system ：L1+N+PE
Power ：0.06KW
Power plug type： Indonesia standard
Machine size : L*W*H 3000*900*1222mm
Machine weight :500kg
More detailed photos:
