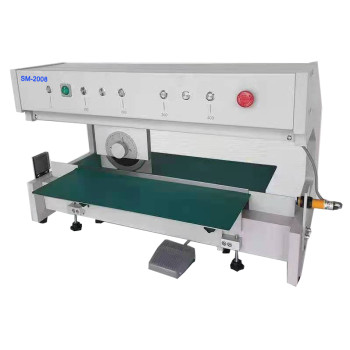

SM-2008 PCB Separator Machine

SM-2008 PCB Separator Machine

SM-2008 PCB Separator Machine
CategoriesMotorized Driven PCB Separator
BrandSAMTRONIK
ModelSM-508
Blade sizeRound blade:Ф125×30×3mm Strip blade:356×45×6mm
Blade materiaHigh speed steel imported
PCB thickness0.6-1.6mm
Shear Length1-400mm
Shear Speed0-500mm/s adjustable
Platform Height adjustable17-93mm
Component Height (Up face)0-35mm(distance between component and V-slot≧3mm)
Component Height (Down face)0-65mm(distance between component and V-slot≧25mm)
Update TimeMar 29,2024
Detail Information
SM-2008 PCB Separator Machine
Introduction

SM-2008 separates both small and large PCBs fast and economically. To optimize operation,the separation length can be programmed.


Safe operation

The PCB is placed with its pre-scored groove onto the linear blade,when the foot switch is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units.The clearance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove.Recommended pre-scored grooves.The pre-scored grooves can be interrupted by any number of cut outs.

Features

· Programmable cutting lengths ranging to 400mm, eliminating time-consuming unnecessary board travel.

· Motorized circular blade cuts against the linear blade to ensure clean, burr-free processing without board stress.

· Programmable to exact cutting length required.

· Will depanel PCBs with components 1mm from the score line.

· Quick-lock design for easy circular blade setup to any PCB thickness.

· Hardened tooled steel long-life blades

· Large processing table, which can be angled to permit processed boards to fall away.

· For operator safety, there are blade-halting light sensors and a Plexiglas safety shield.

Specification

Separator type

Components side  circular blade

Solder side  linear blade

Operation

Motorized driver

Separation length

0-400mm

Separation speed

300/500mm/s

PCB thickness

0.6-1.6mm

Components height

25mm  (65mm should customize )

Mains voltage

220V  50-60H

Earthing stud

Φ10mm

Operation temp

15-25℃

storage/transport

temperature

-20-50℃

humidity.

non-condensing

10-85%

weight

50kg

Dimensions H*W*D

702*450*430mm

the machines comply with the safety regulations of the EC directives
